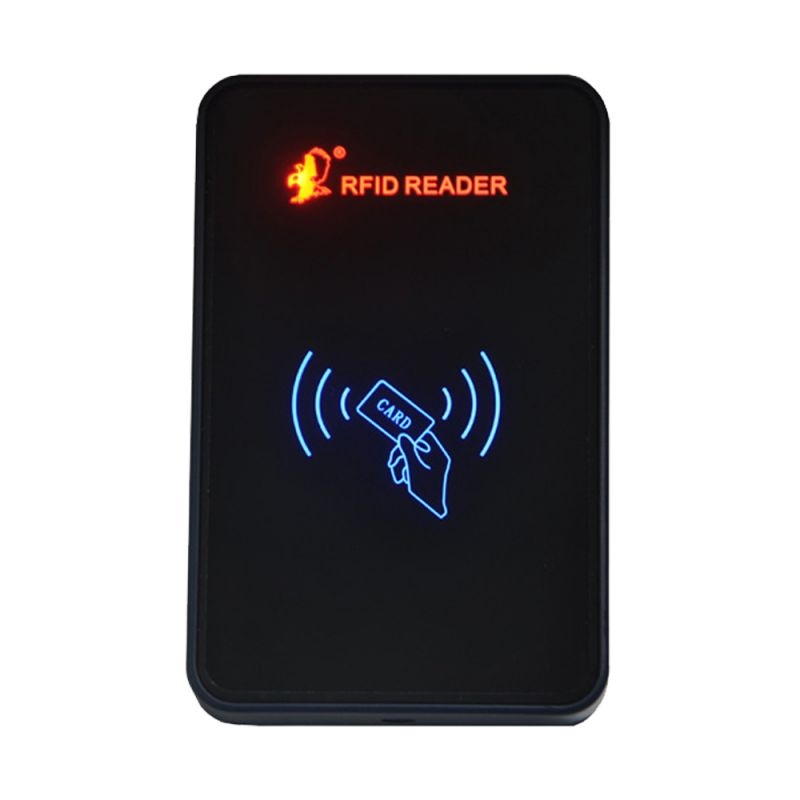

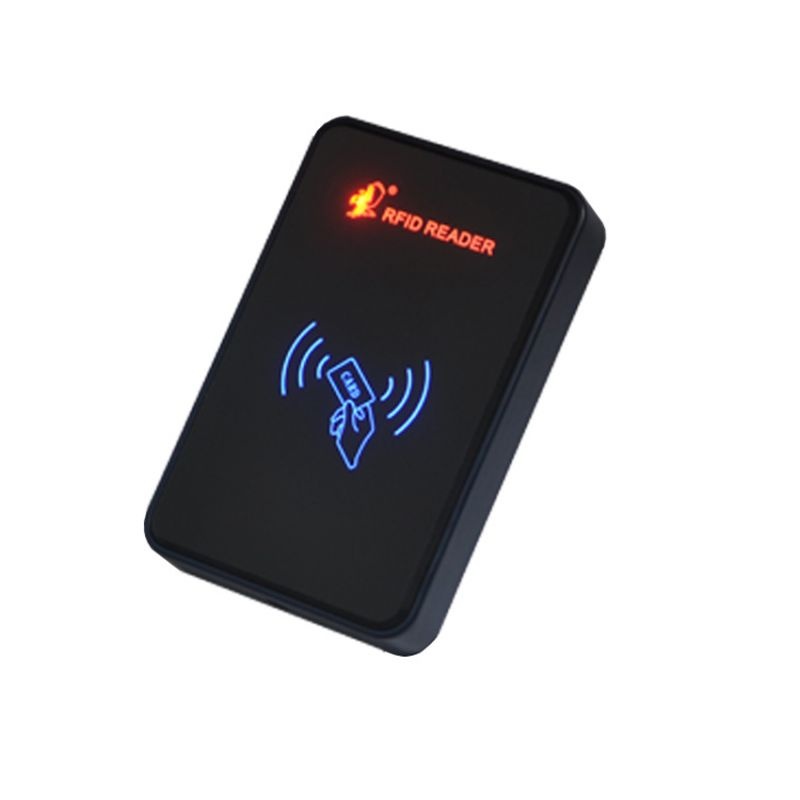

Double Frequency RFID Reader with Anti-Copy

Product Parameters:

Model No.: CR-3066CD

With anti-copy function

Anti-copy mode: anti-copy normal Mifare card

Frequency of reading: 125KHz/13.56MHz

Output interface: Wiegand26/34

Reading speed: 0.2S

Reading distance: 50-100mm/10-50mm

Type of card: ID card/IC card

Working temperature: -30℃to70℃

Working humidity: 10%RH to 90%RH

Working voltage: DC12V

Working current: <100 mA

Transmission distance: 100m

Dimension: 115mm*76mm*22mm

Features:

With anti-copy function for normal Mifare card.

Advanced crash-proof design, protection against surges, back blue light design for working. Black color not easy to dirty.

Advanced anti-crash circuit design, anti-surge protection, anti-misconnection protection

The operating current is small, metal shielding and anti-interference ability of the reader.
