  • Four Door Access Control Board

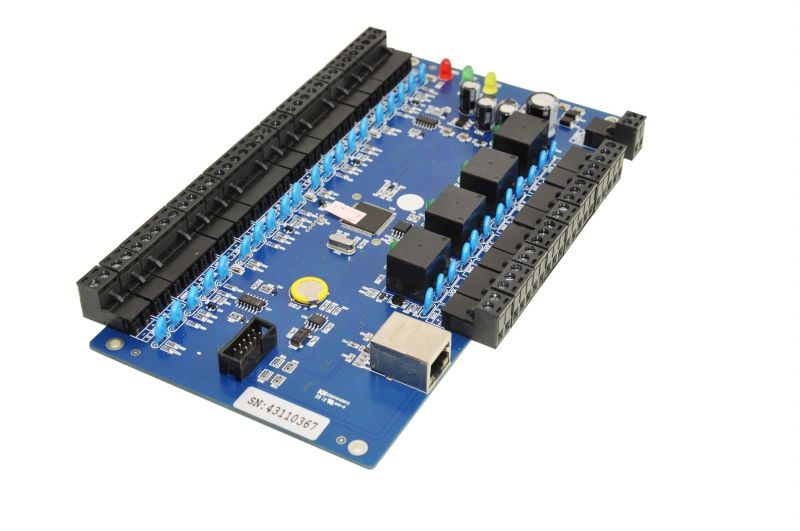

Four Door Access Control Board

Four Door Access Control Board

TCP/IP Access Control Board

Four Door Two Ways Access Control Board

Model no.: CA-3240BT

Quantity of readers: 8

Door lock relay: 4

Door controlled: 4

Dimension: 216*131mm

Working voltage: DC 12V

Power consumption of circuit board: ≦100mA

Operating temperature: -25℃ to 70℃

Operating humidity: 10%–90%RH, no-condensation

Communication protocol: TCP/IP

Communication rate: 10M/100M adaptive

Max communication distance: depends on internet coverage area

Max quantity of controllers: unlimited

Data storage: 26,000 registration cards, 80,000 reading records, 20,000 records of door contact, exit button, alarm

Power-off protection: data can be saved for 8 years after power-off

Interface protocol: Wiegand26/34 bit(can be set by software, the default is 26 bit)

Distance between reader and controller: Less than 100m

Door lock control: Every group relay using NC/COM/NO to control output, the max control voltage is 250V, the max control current is 6A


Special functions:


   ①automatically search for and install controller

   ②remote open door,full card to open door

   ③running stable monitoring(voltage input,watch dog,operating days)

   ④time frame management

   ⑤limit the number of people inside door and region

   ⑥fire protection alarm

   ⑦access authentication methods setting

   ⑧anti-pass back, interlock function

   ⑨read card inside and outside to open door

   ⑩video capture
